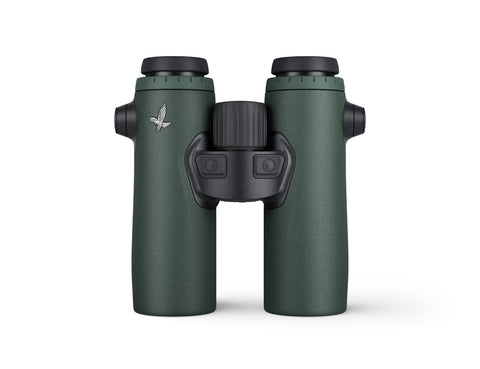

Concentrate on the essential with these compact, high-performance binoculars with rangefinder and tracking assistant. The EL Range 8x32 is perfect for everyone who prefers lightweight binoculars and an extended overview on their challenging hunting tours.
Scope of delivery
FSB functional sidebag
UCS-R universal comfort strap with battery compartment
Eyepiece cover
Objective lens cover
BT tool
Microfiber cloth
Soap & Brush
Product description
Compact binoculars with tracking assistant
Ground-breakingly lightweight: 25 ounces (685 grams)
With rangefinder and angle measurement
Customizable with the EL Range Configurator App
Suitable for right- and left-handers
Tracking Assistant
The integrated tracking assistant helps you to track your target by guiding you to where you fired your last shot. You can use this function via the EL Range Configurator App on your phone or directly on your EL Range binoculars.
OBJECTIVE
8x
Magnification
32 mm
Effective objective lens diameter
4 mm
Exit pupil diameter
17 mm
exit-pupil-distance-eye-relief-mm
135 m/1000m
Field of view at m/1,000 m / ft/1,000 yds
7.7 °
Field of view degrees
7.7 °
Field of view with eye glasses (°)
60 °
Field of view apparent
5 m
Shortest focusing distance
-7 to +5 dpt
Diopter adjustment
90 %
Light transmission
56-74 mm
Pupil distance
16.0
Twilight factor acc. to DIN-58388
SIZE & WEIGHT
146 mm
Length in mm.
131 mm
Width in mm.
69 mm
Height in mm.
685 g
Weight without batteries
